Upgrading the Power Wheels Jeep

   Posted by: RobPatton   in Life Stuff, Tech

Charles has a Power Wheels Jeep that is about 2.5 years old.  It doesn’t get used much by just him, but when we have company or when the neighborhood kids are over, its not unusual to see kids piled all over it  till you can just about hear it cry in pain.



MG_7172

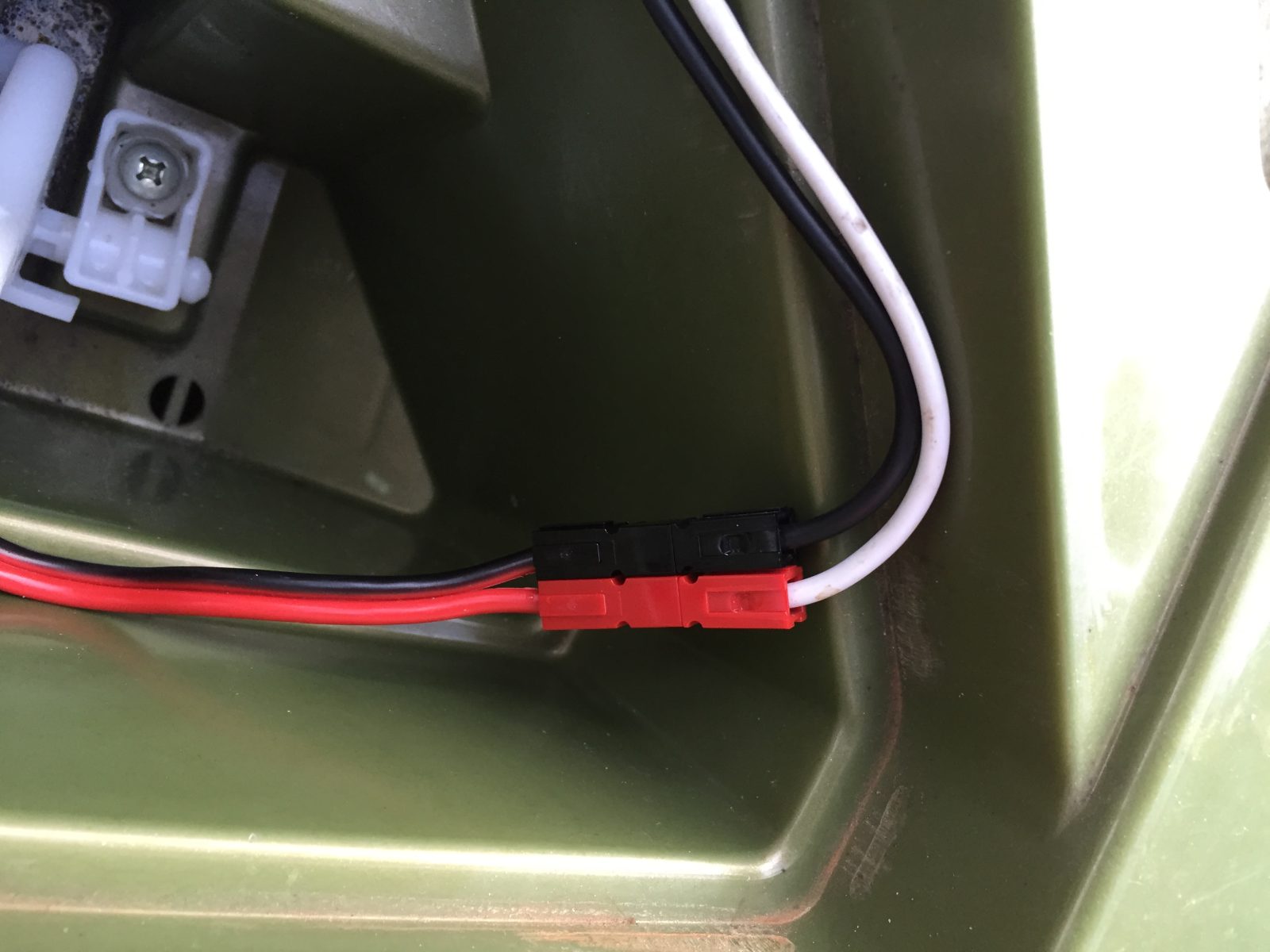

Like every other one, about 2 years in, despite good treatment, the battery started perform to only about 50% its rated capacity.   Earlier in the game, I had cut the wires to their proprietary plug, and added anderson power pole connectors Power Poles link so that I could connect and use my own computerized (faster) charger.



MG_7177



The Orig battery was a 9.5 ah custom everything battery making it impossible to find an exact replacement without going to them



137_2_0_0



In my desire to “upgrade” without actually going crazy.  I wanted run-time, not top speed.    The solution found was a pair of 10.5 ah batteries side by side on end.  This yields 2.21 times the run time of a factory battery, at about the same cost of the one they want you to buy.   Short custom cable ,and we’re good.  It worked fine.

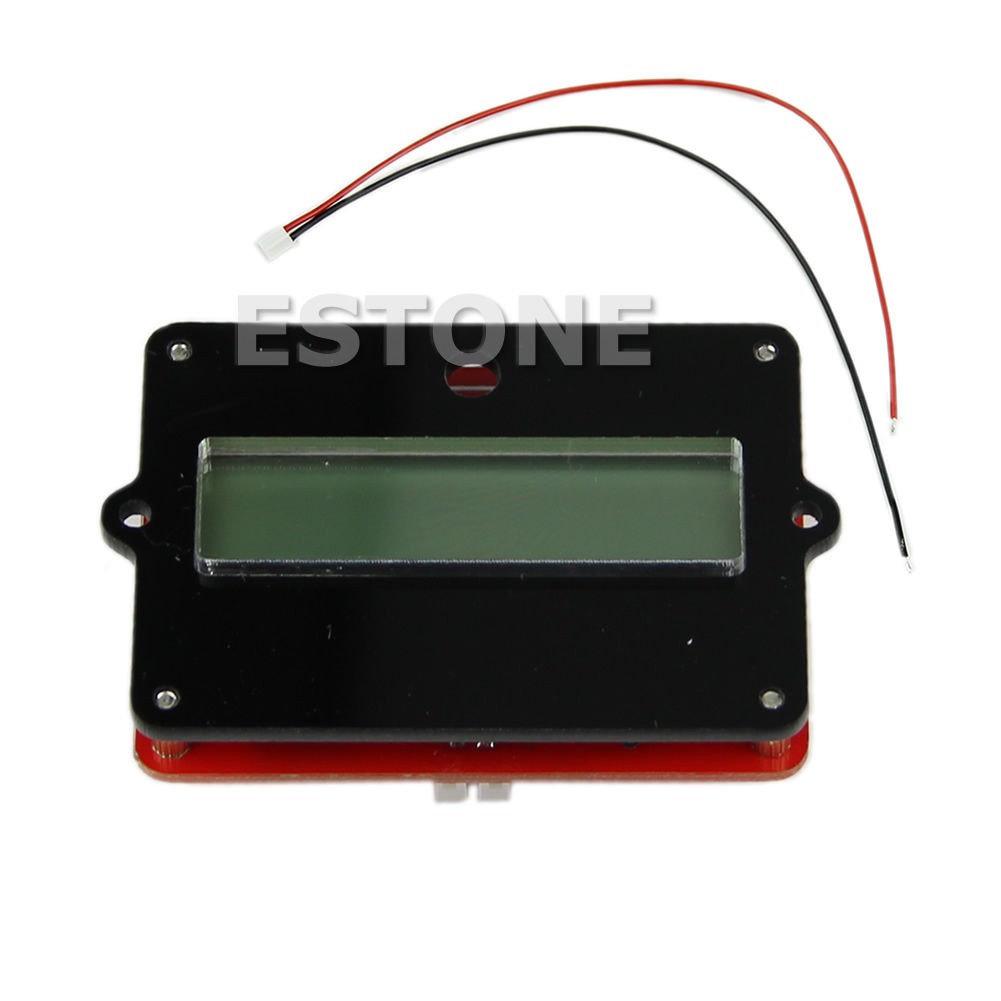

Not willing to leave well enough alone, I had purchased some battery meters from ebay for 5$ish each.

_57

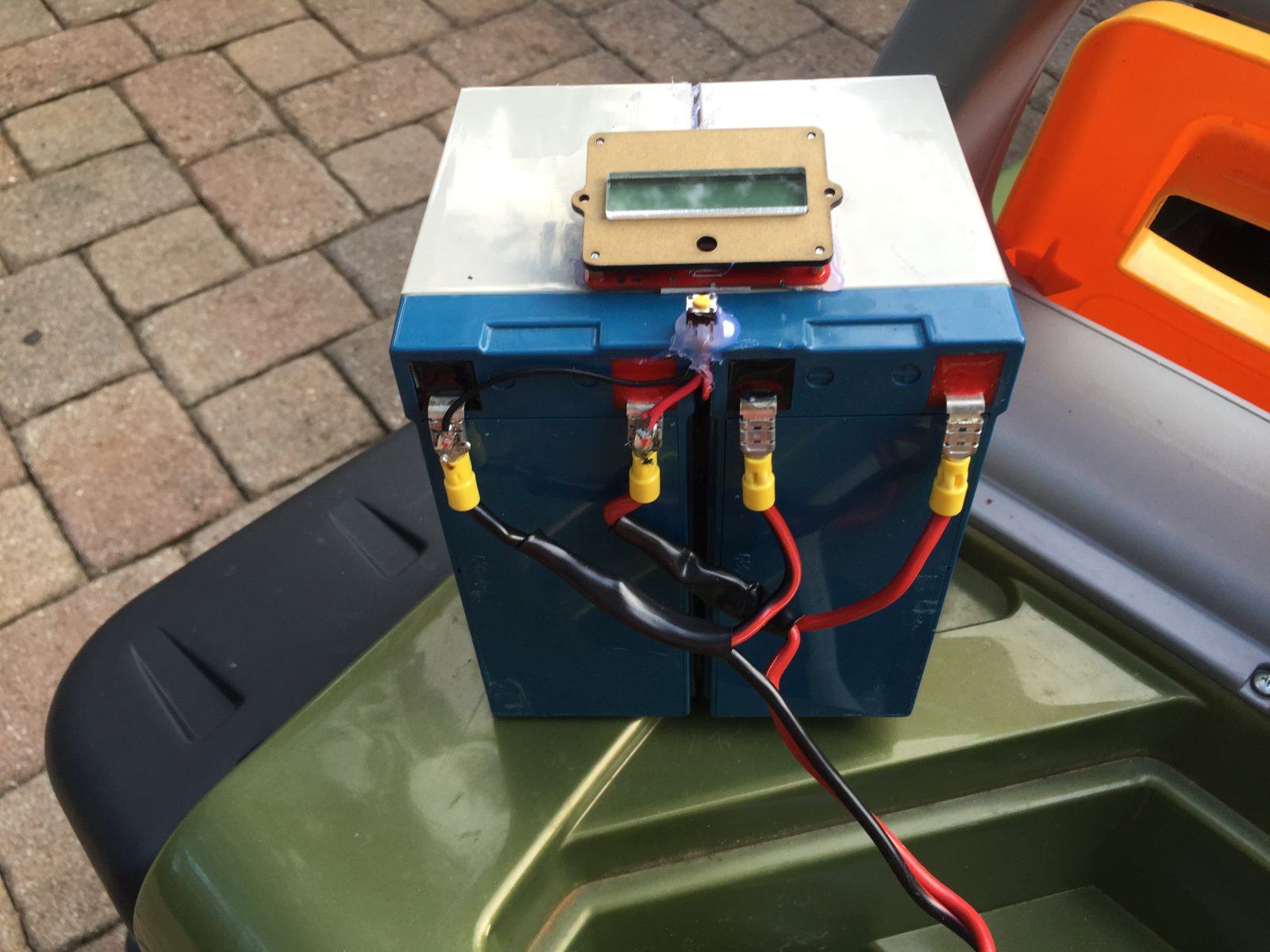

So I added a momentary push buttom, and this to the top of the battery.



MG_7176

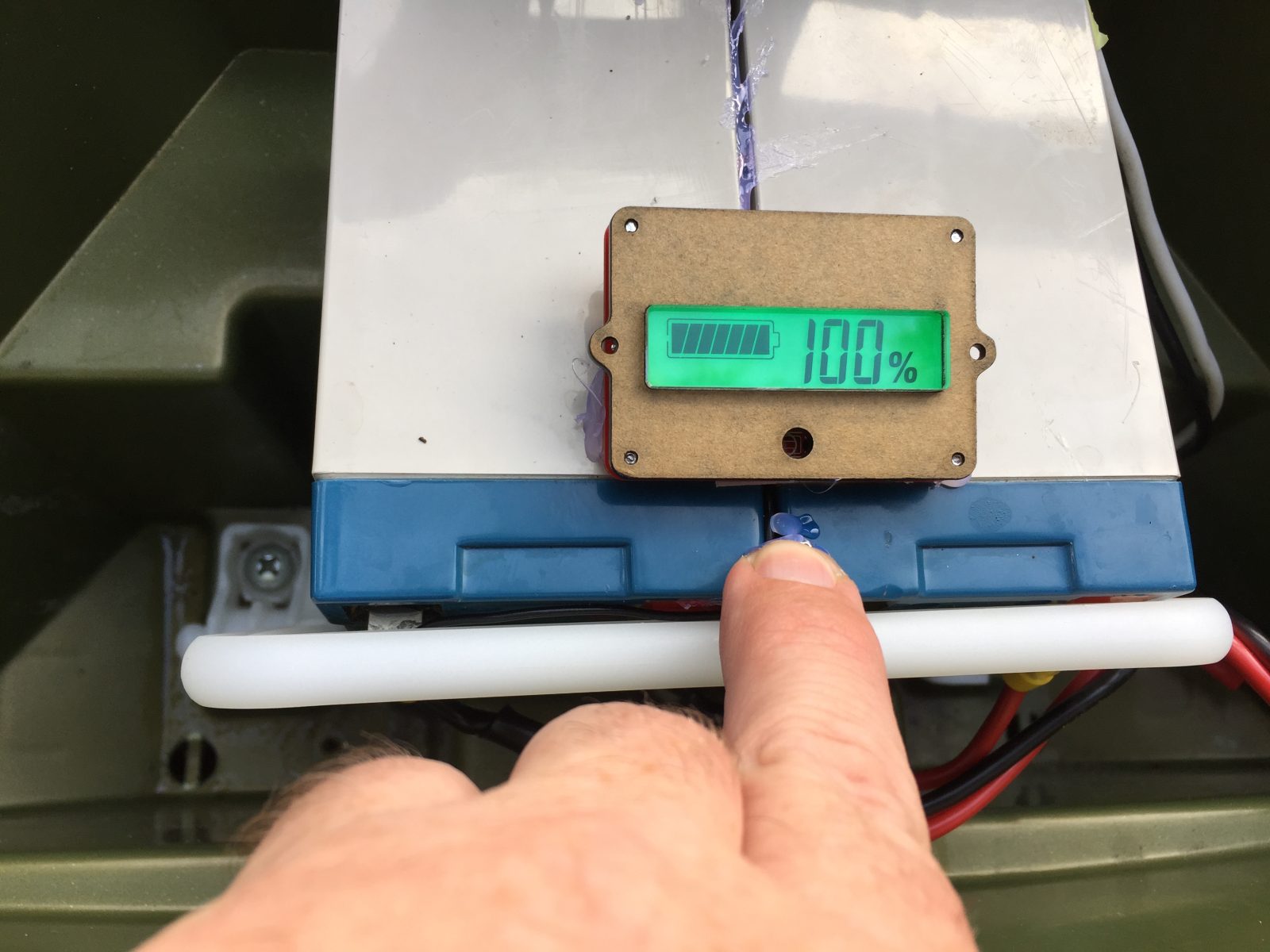

So now at any time, Charles can check his “Gas Gauge” and know what the battery status is.



MG_7175

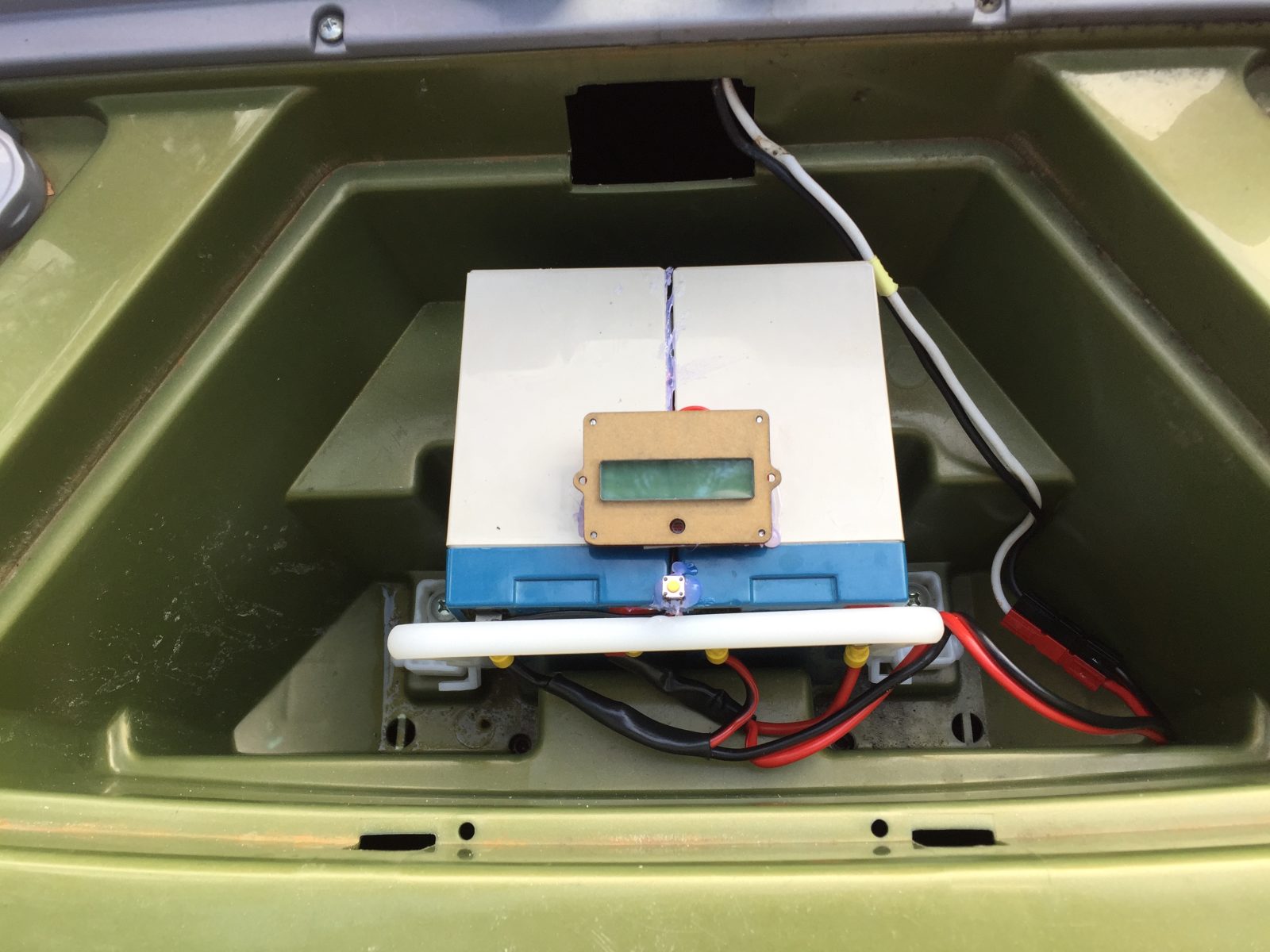

And it looks good in the Jeep..



MG_7173



At some point I’ll consider moving the gauge and button onto the dash, but for now, this works just fine..
